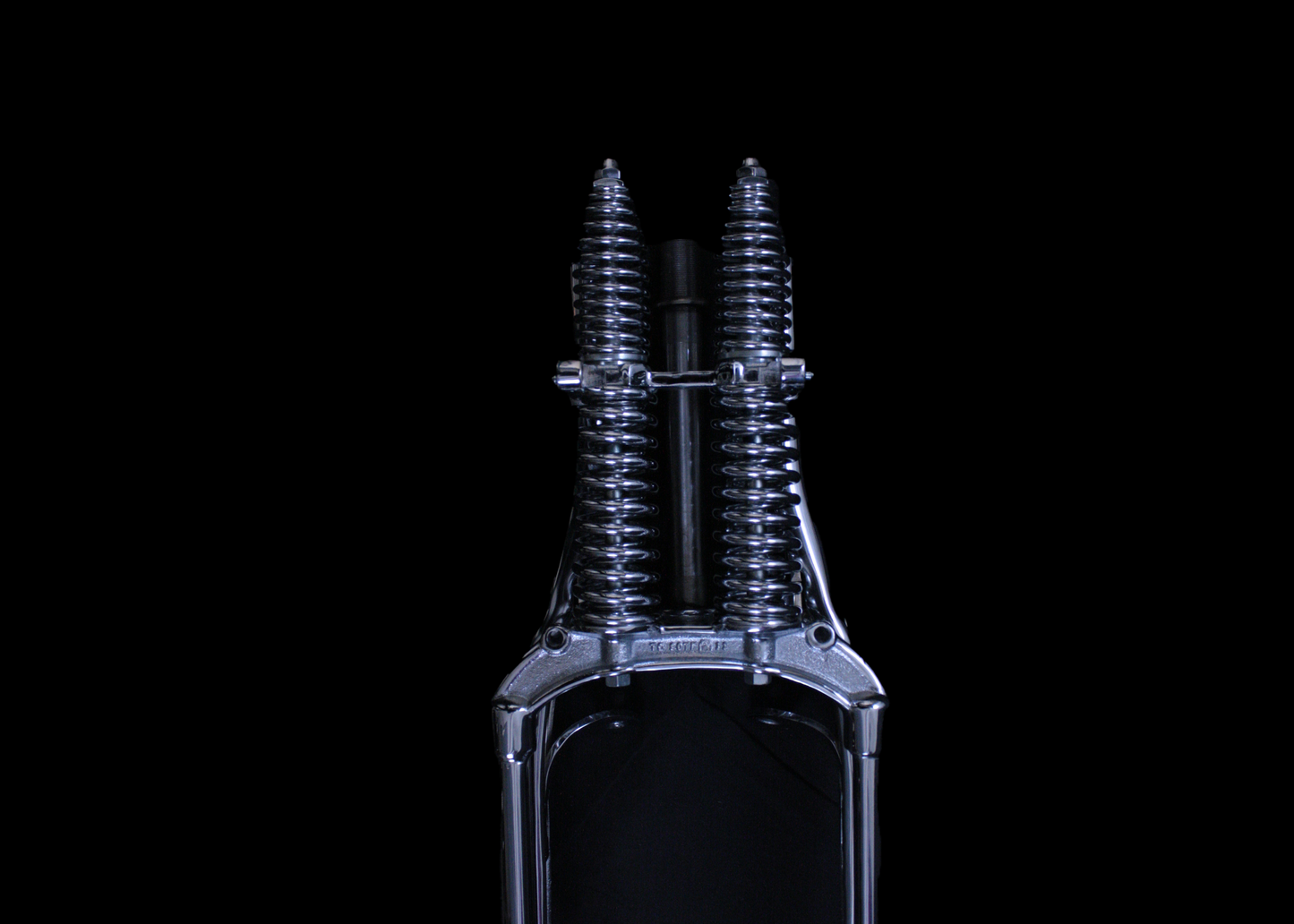

Cannonball Inline I-beam Springer Forks

European reproduction of the 1936 VL Springer

• Fitment: Big Twins
• Construction: Steel
• Finish: chrome-plated or black powder coat
• Length: 19.5"
• Rake: 0° (inline)
• Length over/under stock: stock
• Origin: Europe

Addressing the challenges commonly encountered during OEM fork installation, the fork now boasts a 1” fork stem (1"-24 thread) and is meticulously crafted for seamless compatibility with Big Twin Timken bearings (Timken #44643), eliminating the need for any additional adjustments. This streamlines the installation process compared to its original counterpart.

At the top of the legs, internal threads of M20x1.5 are incorporated, allowing for the attachment of riser adapter studs or plugs (available separately). Alternatively, users can opt for the compatibility with 1936 and up Springer inline handlebars or inline top clamps featuring a center-to-center distance of 4-3/4" for the rear legs. This design provides a variety of handlebar and riser mounting options. The fork, finished in chrome or black powder coating, offers variations with parkerized or chrome springs and holds TUV certification in Europe.

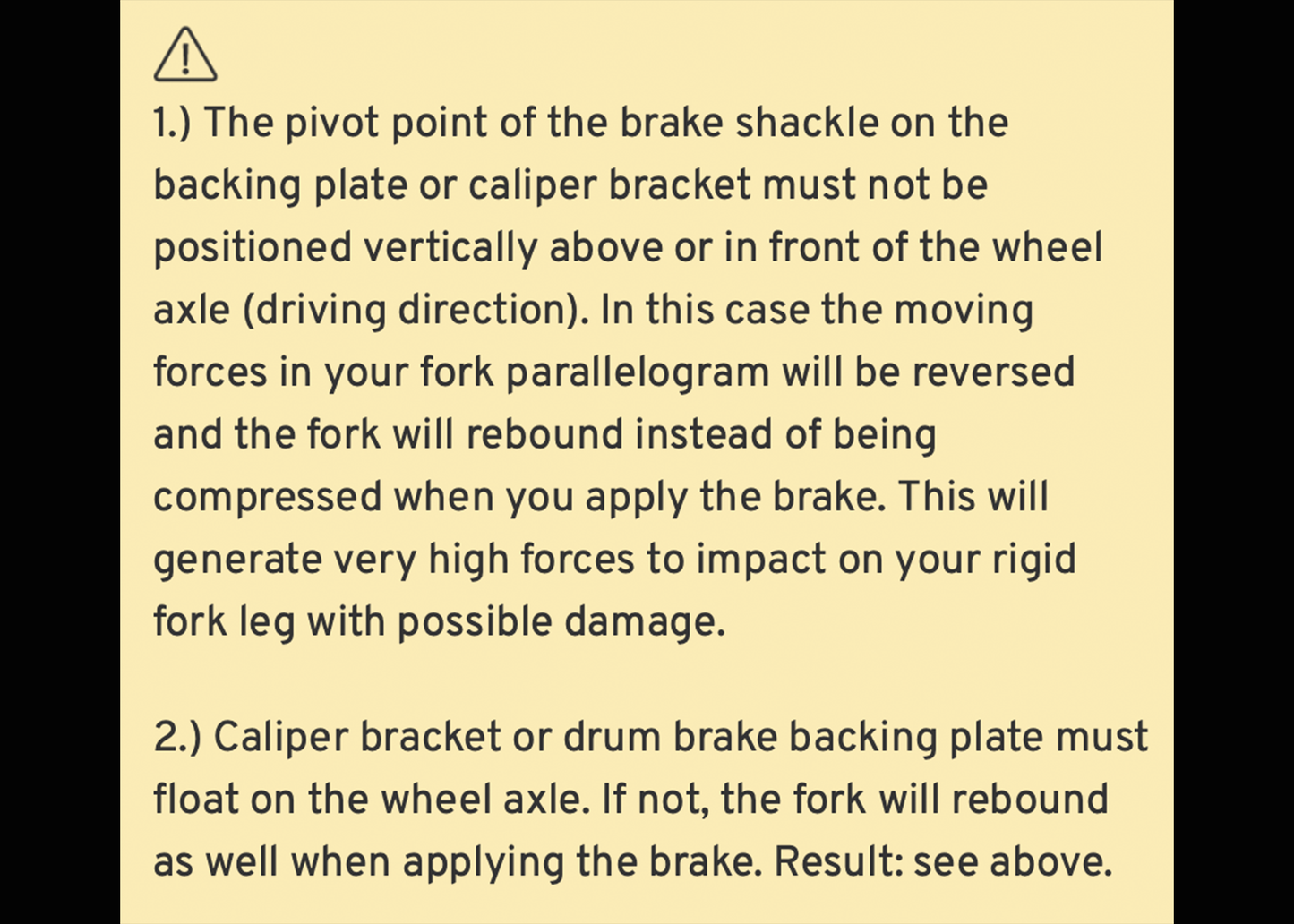

Considerations:

1) The Cannonball springer requires a specific axle when using a wheel with 3/4" wheel bearings. Custom axle spacers may be necessary in addition to the axle.

2) It's essential to note that this springer fork does not come with a top clamp, bearing adjuster nut, or top nut.
